This highly innovative urinal flush controller from Vectair Systems permits can be set to flush at different intervals for selected times of the day.  When used with microbiological UMD cartridges, this feature is particularly useful. For example, the urinals can be flushed every 4 hours between 08:00 and 18:00 ("WC active time" setting) but only once overnight, therefore increasing water savings and allowing the beneficial ingredients of UMD sleeves to work unhindered for a long period, further reducing the risk of blockages.  When used with low-flushing urinals, the Sensaflush2 should be used in "RX mode" so the PIR sensor is inactive.



One of the benefits we have experienced from the using the Sensaflush2 in conjunction with low-flushing urinals is that the "time until next flush" is clearly displayed on the LCD screen. This provides reassurance that the system is operating according to requirements. Moreover, the wireless link between the sensor and the valve controlling the water flow makes it more versatile and easier to install.



Uniquely, Gentworks includes the ASCO H262 solenoid valve rather than the one supplied as standard with the Sensaflush2 because we have found the ASCO model to be the most tolerant and reliable.



- wireless link: the sensor box can be fitted up to 15m away from the unit that controls the valve, linked by radio (several channel options)

- informative display: an LCD display shows a countdown until the next flush, amongst other useful information, making the controller easier to calibrate and giving continual reassurance that it is working as required.

- flexible intervals between flushes: Sensor activated flushing can be set to occur between 5mins and 1hr after the urinal has been used. As with most other sensor controls, if the sensor is not triggered then no flush will occur for 12 hours (hygiene/janitorial flush). In addition, an 'active' period can be set whereby the hygiene flush will occur more regularly, for example every 2 hours.

- timer only mode: the sensor can be turned off and flushing set to occur at regular intervals. For example, it can be set to flush every 4 hours only between 08:00 and 18:00. Alternatively, if a microbiological sleeve or block product is in use, flushing can be spaced at regular intervals of a few hours.

- audible low battery alarm and charge remaining indicator

- uses standard AA batteries (10 x non-rechargeable) with typical life of 2 years

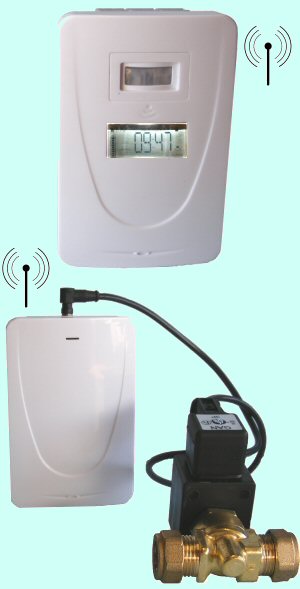

Includes: - master control box with wide angled PIR sensor and LCD display - second control box for solenoid valve - ASCO solenoid valve - cable to attach the second control box to solenoid - mounting plates with screws and rawlplugs - strong sticker pads as an alternative mounting method    Click PDF icon to view instruction manual
