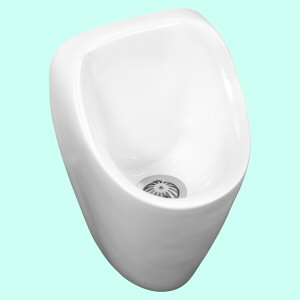

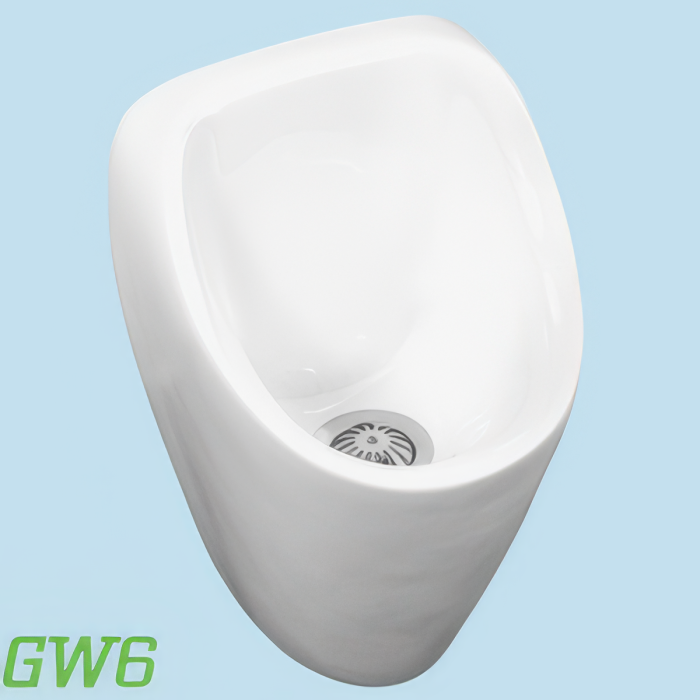

GW6 Karoo Compact Ceramic Waterless Urinal
GW6 Karoo Compact Ceramic Waterless Urinal
GW6 Karoo Waterless Urinal Bowl

Out of stock - More Due in Early-Mid July

The GW6 Karoo waterless urinal bowl uses the same GW6 valve core as the popular GW6 cartridge. The urinal is manufactured in ceramic and is suitable for both concealed and exposed pipework. The compact design, projecting only 260mm from the wall, avoids splashback issues by having a deeper than normal bowl,

Key Benefits:

  • unique dual valve technology for added protection against odours
  • small, replaceable GW6 valve core typically lasts for 6 months, often as long as a year
  • no sealant required
  • no special tools required for maintenance
  • high drainage rate
  • manufactured in ceramic
  • slim projection space saving design
  • waste pipe connection can be horizontal (e.g. through panel) or vertical (visible for exposed pipework)

Out of stock - More Due in Early-Mid July

About GW6 Karoo
Product Diagram
Fitting Guide
Cleaning & Maintenance

Sluicing and Cleaning
Cartridge Change
Includes:
- 1 x GW6 Karoo waterless urinal
- 1 x waterless GW6 housing and valve
- 1 x 1¼" x 1½" multifit straight connector (ST28M)
- 2 x wall hangers
- 2 x nylon fixing plugs
- 2 x galvanised steel screw hooks

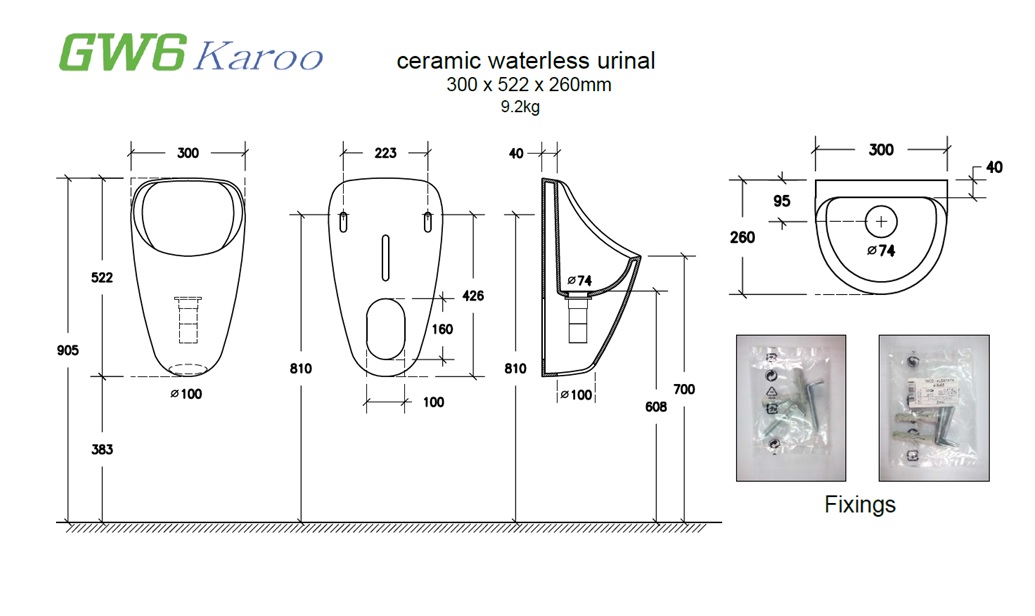

Bowl Dimensions:  Height = 522mm     Width = 300mm     Projection from wall = 260mm


Instead of a fluid barrier, the GW6 cartridge uses a silicone double-skirt valve which is tolerant of both water and common cleaning chemicals.

 Click here for more about the GW6.  See replacement valves for GW6 products

How to avoid blockages in waste pipes
Whilst the waste pipes of waterless urinals block less frequently than for most flushed urinals, uric acid salts can still form a sludge which eventually could cause a blockage. Sludge can be a particular problem if the waste pipes are shared with sinks or are poorly configured.  Gentworks recommends periodic sluicing with Bactericidal Cleaner to break down this sludge and carry it away into the main drain. The GW6 valve can be sluiced regularly; once every 2 to 4 weeks is recommended.  The solution used should be approximately 1 part Bactericidal Cleaner to 9 parts warm water from the washroom hot tap.


Pack Code GW6KAROO
Delivery Time 2 to 3 working days
Replacement valve core
Bactericidal Cleaner for cleaning/sluicing
Concealed waste fitting
